Name: Air Diffuser Micro Nano Bubble Generator 50EDQS55S Fish Tank High Oxygen
Brand: Foshan Jianzhong Stainless Steel Sealing Co., Ltd
SKU: pump-1
Availability: InStock

Home > products > Water Pump And Accessories >

Air Diffuser Micro Nano Bubble Generator 50EDQS55S Fish Tank High Oxygen

micro nano bubble generator 50edqs55s

air diffuser micro nano bubble generator

50edqs55s nano micro bubble generator

Place of Origin:

China

Brand Name:

JIANZHONG

Certification:

ISO 9001

Model Number:

pump-1

Request A Quote

Product Details

Application:

Submersible

Pressure:

High Pressure

Voltage:

24V

Customized Support:

OEM

Place Of Origin:

Guangdong, China

Power Source:

Electric

Structure:

Single-stage Pump

Brand Name:

JIAN ZHONG

Model Number:

XDC Series

Horsepower:

Customized

Material:

Plastic

Selling Units::

Single Item

Single Package Size::

25X22.5X16 Cm

Single Gross Weight::

4.000 Kg

Highlight:

micro nano bubble generator 50edqs55s

air diffuser micro nano bubble generator

50edqs55s nano micro bubble generator

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Packaging Details

carton box or according to customers' requirements

Delivery Time

7 work days

Payment Terms

T/T, D/P

Supply Ability

100000 Piece/Pieces per Month

Pressure Water Tank 200m3/H Combined With Pump 90kW For 220V/380V

Get Best Price

Video

Air Diffuser Micro Nano Bubble Generator 50EDQS55S Fish Tank High Oxygen

Get Best Price

Video

OEM 24V Pressure Water Tank 550L Combined With Pump 1100W

Get Best Price

Video

High Oxygen Air Diffuser Micro Nano Water Vortex Bubble Water Tank Pump For Waste Water Treat Aquaculture Cultivatio

Get Best Price

86-0757-82532026

Contact Now

Product Description

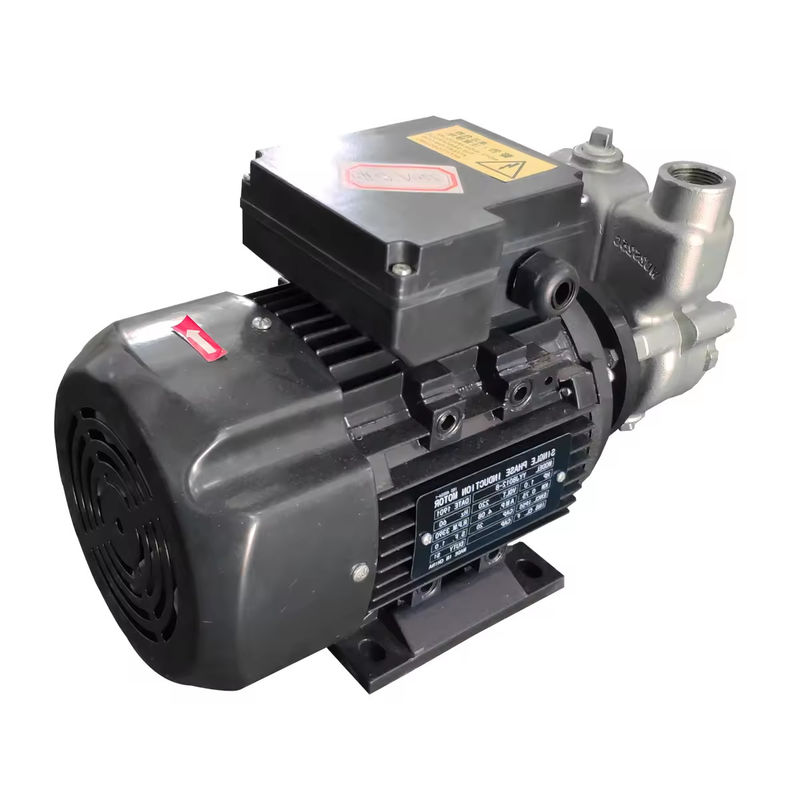

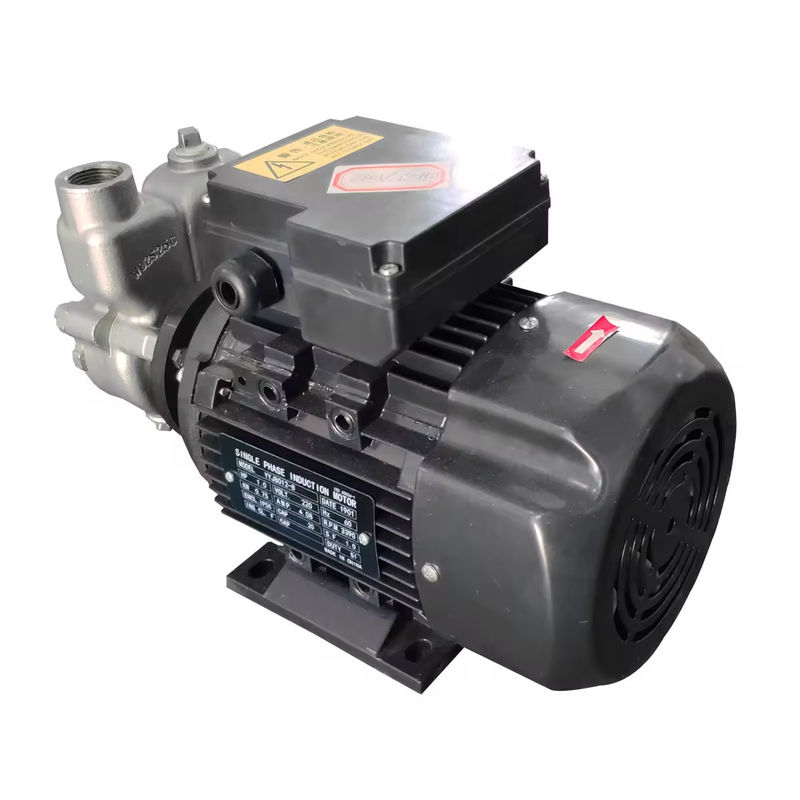

Fish Tank High Oxygen Air Diffuser Micro Nano Water Vortex Bubble Generator 50EDQS55S

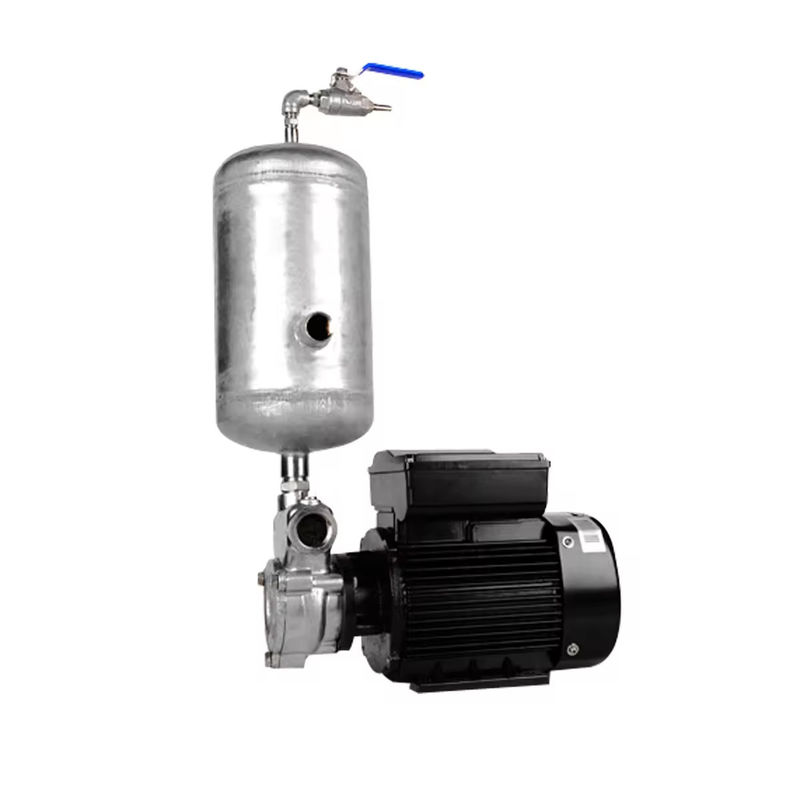

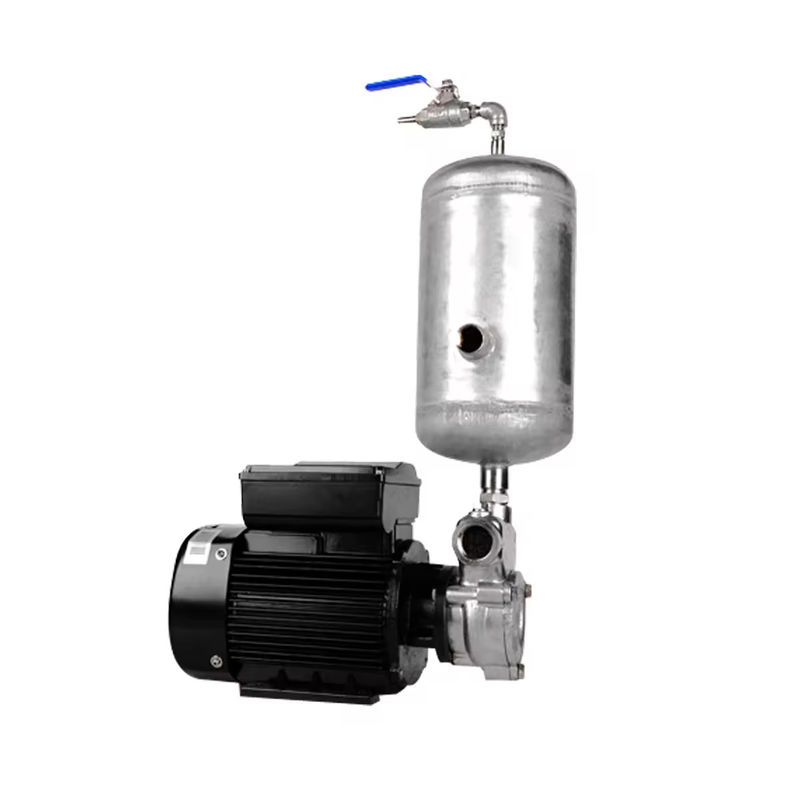

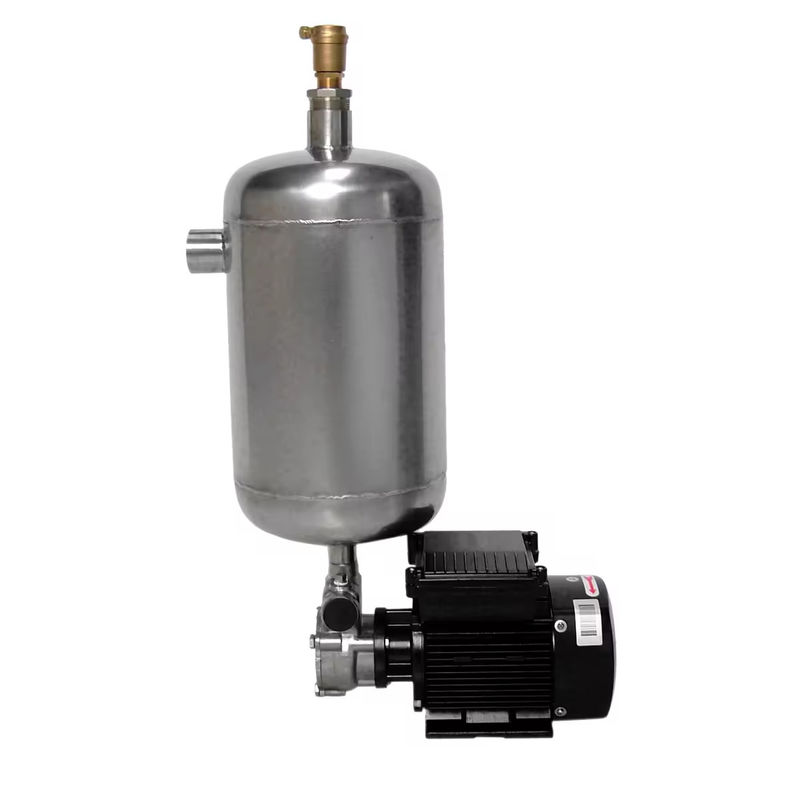

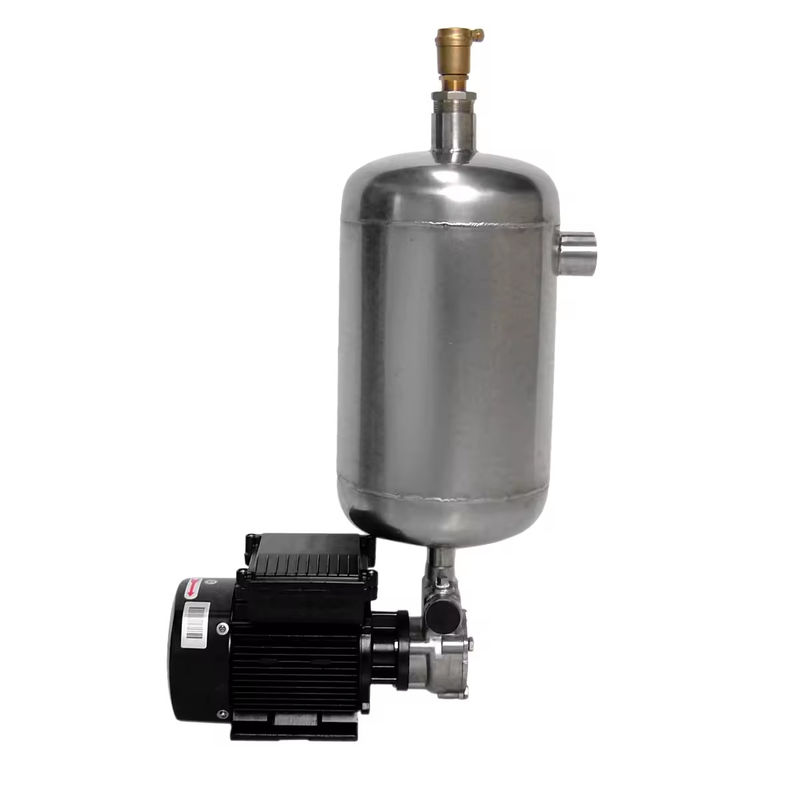

1-50T/H Gas liquid mixing pump with tank nano microbubble generator ozonewater mixing pump

Micro bubble is

A new kind of mixing technology. It can mix gas and water. The gas can be any gas, such as oxygen, ozone. High gas

liquid mixing efficiency with micro bubble 20-30microns .It is three times more efficient than venturi.

Features:
Product Featrues:
1. Water flow rate:1T/Hr to 50T/Hr
2. Micro bubbles size 20~30microns for gas water mixing
3. Used with SS304 or 316L material mixing tank for impoving mixing efficiency(OEM)
4. 220V/380V are available, when you make order pls kindly note us the voltage you need, thanks.

Applications:

1. Aeration systems
2.Oxygen injection
3. Ozone injection
4.Aquaculture - fish farming
5.Spa bath systems
6.Microbubble
7.Waste water treatment plants
8.Paper mill process water recycling etc.
9.DAF System

Model No.	Water Flow rate (T/Hr)	Specification	The maximum head of delivery (m)	flow rate (L/Min;M3/h)	The flow rate of head delivery at 40M (L/min;m³/h)	Maximum temperature resistance of material (℃)
20WSS04	1T	220/50HZ; 0.37KW	45m	12L/min 0.72m³/h	14L/min 0.84m³/h	120℃
25WSS07	2T	220/50HZ; 0.75KW	50m	17L/min 1.02m³/h	25L/min 1.5m³/h
32WSS15	3-4T	380/50HZ 1.5KW	60m	35L/min 2.1m³/h	52L/min 3.12m³/h
40WSS22	5-6T	380/50HZ 2.2KW	50m	82L/min 4.92m³/h	102L/min 6.12m³/h
50WSS75	10-15T	380/50HZ 7.5KW	80m	50L/min 3.0m³/h	150L/min 9m³/h	180℃
65WSS110	25-30T	380/50HZ 11KW	60m	300L/min 18m³/h	500L/min 30m³/h
80WSS220	45-50T	380/50HZ 22KW	60m	650L/min 39m³/h	850L/min 51m³/h
